Paper X, XX, XXX Reinforced Phenolic Laminate Tubes - .125" Wall Thickness
Paper X/XX/XXX Paper Reinforced Phenolic
- natural (tan)
Technical Data Sheet
This grade is composed of a paper base impregnated with a phenolic resin binder.
It has good electric strength properties with fair mechanical strength.
Outstanding for use as template material and or backup material.
NEMA
X certs to MIL-I-24768/12 PBM, IEC 60893-3 Type 4 PF CP 201
NEMA XX certs to
MIL-I-24768/11 PBG, IEC 60893-3 Type 4 PF CP 203
NEMA XXX certs to
MIL-I-24768/10 PBE, IEC 60893-3 Type 4 PF CP 201
NEMA grades X,
XX and XXX Paper Reinforced Phenolic -- natural color is typically light tan to
brown. These grades are composed of a paper base impregnated with a phenolic
resin binder. (Phenolics are the oldest, best-known general purpose thermoset
resins. They are among the lowest in cost and easiest to process. Phenolics are
quite adequate for a fair percentage of electrical applications. Generally
speaking, they are not equivalent to epoxies in resistance to moisture,
humidity, dimensional stability, shrinkage and retention of electrical
properties in extreme environments.) The paper reinforced phenolic has good
electric strength properties with fair mechanical strength and are outstanding
for use as template material and/or back-up material.
Click Here for X, XX, XXX or Sheets, Rods
| Select X, XX, XXX Tubing Wall Thickness | ||
| 1.00" | ||
Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts 42-48"

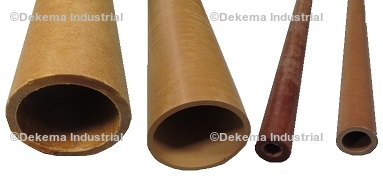

.125" Wall Thickness Paper Phenolic Tubes
| Part # | OD (in.) | ID (in.) | Minimum Purchase | Price Per Foot |
|---|---|---|---|---|
| DPT-1866 | .438 | .187 | 51 Feet | $27.21 |
| DPT-1870 | .500 | .250 | 48 Feet | $28.11 |

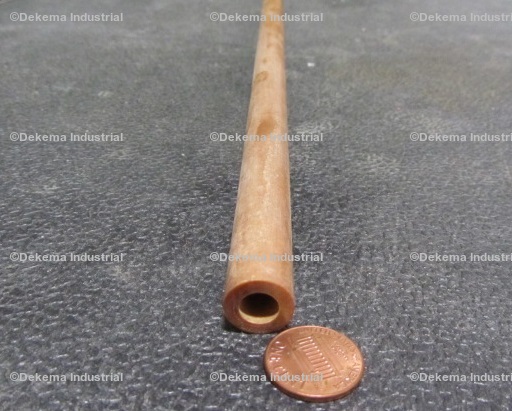

| DPT-1874 | .563 | .312 | 45 Feet | $30.35 |

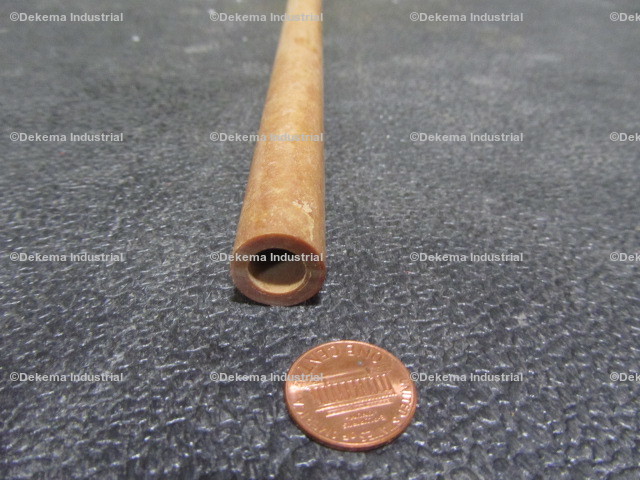

| DPT-1164 | .625 | .375 | 45 Feet | $31.15 |

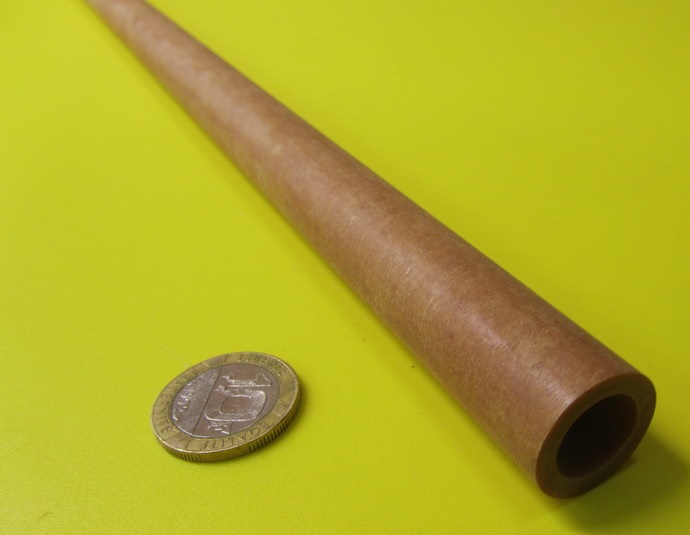

| DPT-1878 | .688 | .437 | 42 Feet | $33.30 |
| DPT-1882 | .750 | .500 | 39 Feet | $35.46 |
| DPT-1887 | .813 | .562 | 36 Feet | $37.61 |
| DPT-1893 | .875 | .625 | 36 Feet | $39.73 |

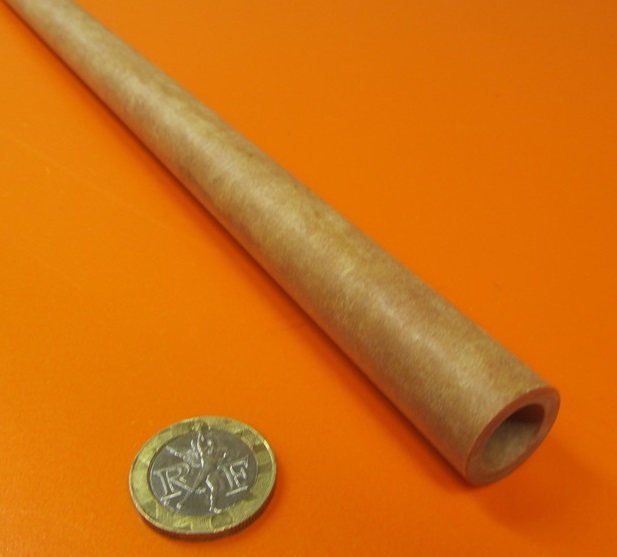

| DPT-1898 | .938 | .687 | 33 Feet | $41.88 |
| DPT-1902 | 1.000 | .750 | 33 Feet | $44.03 |

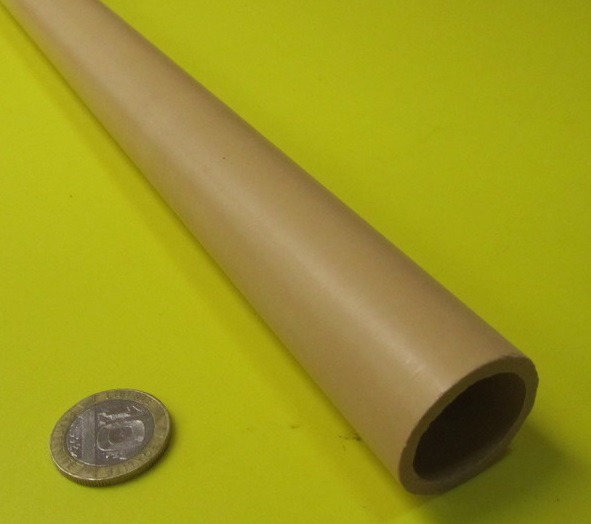

| DPT-22525 | 1.062 | .812 | 30 Feet | $46.18 |
| DPT-1908 | 1.125 | .875 | 30 Feet | $48.30 |

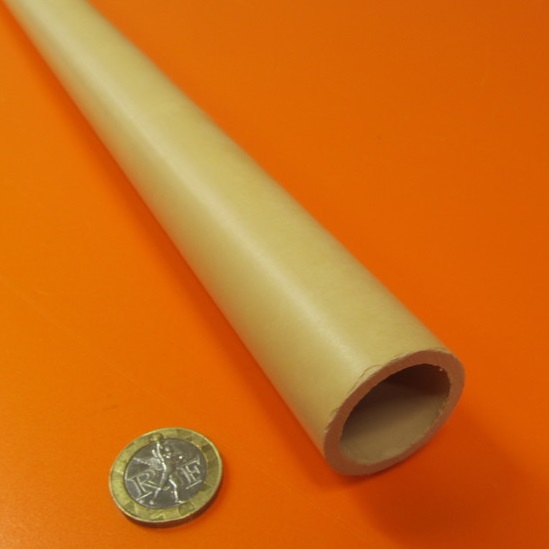

| DPT-22538 | 1.187 | .937 | 27 Feet | $50.46 |
| DPT-1914 | 1.250 | 1.000 | 27 Feet | $52.61 |
| DPT-22536 | 1.312 | 1.062 | 27 Feet | $54.73 |
| DPT-22535 | 1.375 | 1.125 | 24 Feet | $56.96 |
| DPT-22534 | 1.437 | 1.187 | 24 Feet | $59.00 |
| DPT-1918 | 1.500 | 1.250 | 21 Feet | $67.28 |
| DPT-22532 | 1.562 | 1.312 | 21 Feet | $69.63 |
| DPT-22540 | 1.625 | 1.375 | 21 Feet | $72.09 |
| DPT-22530 | 1.688 | 1.437 | 18 Feet | $74.36 |
| DPT-1923 | 1.750 | 1.500 | 18 Feet | $76.73 |
| DPT-22528 | 1.812 | 1.562 | 18 Feet | $79.05 |
| DPT-22527 | 1.875 | 1.625 | 18 Feet | $81.43 |
| DPT-22526 | 1.937 | 1.687 | 18 Feet | $83.78 |
| DPT-1928 | 2.000 | 1.750 | 18 Feet | $86.16 |

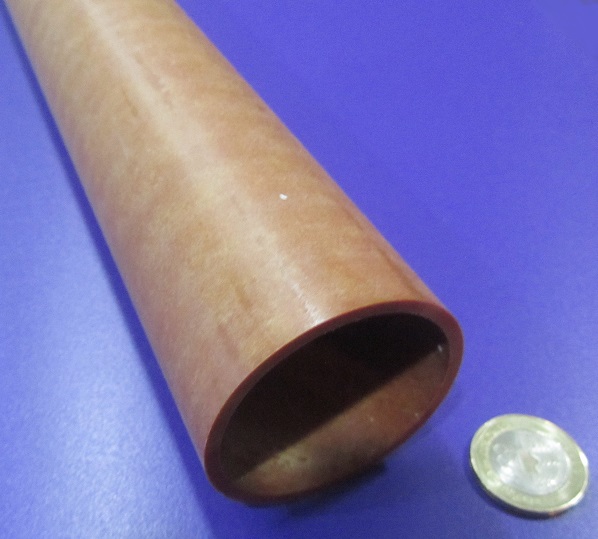

| DPT-22531 | 2.062 | 1.812 | 18 Feet | $88.48 |

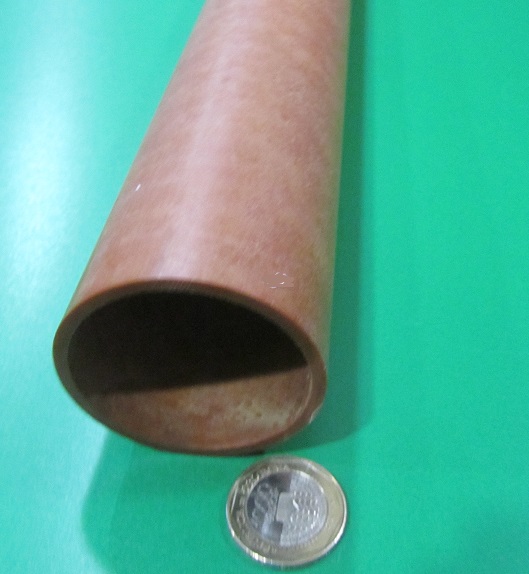

| DPT-22533 | 2.125 | 1.875 | 15 Feet | $90.86 |

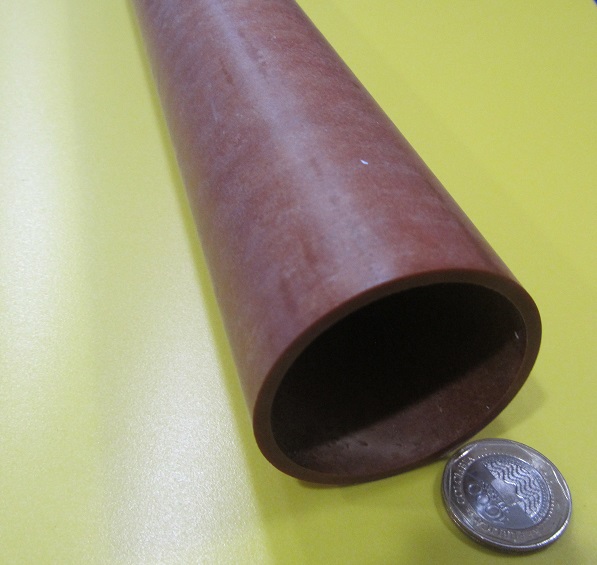

| DPT-22556 | 2.188 | 1.937 | 15 Feet | $93.21 |

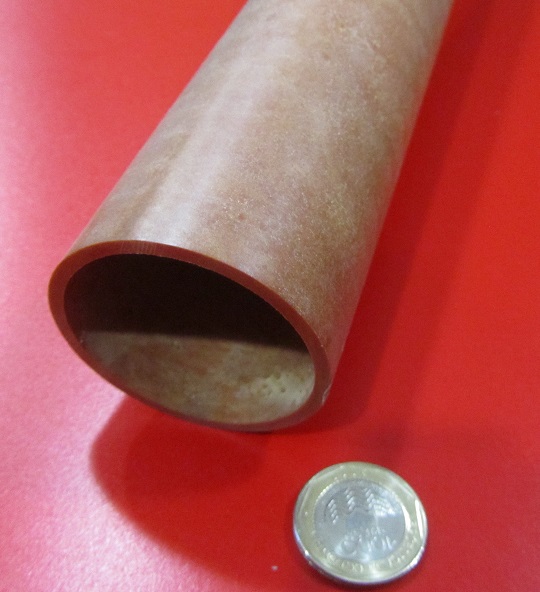

| DPT-1933 | 2.250 | 2.000 | 15 Feet | $95.58 |

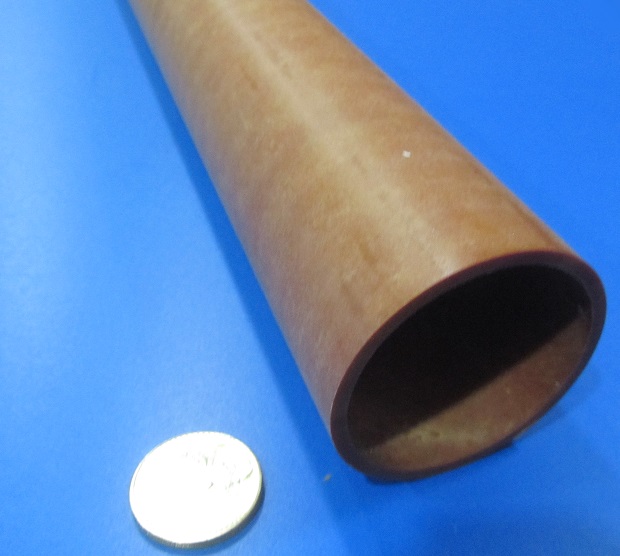

| DPT-22554Q | 2.312 | 2.062 | 15 Feet | $97.93 |
| DPT-22553 | 2.375 | 2.125 | 15 Feet | $100.31 |

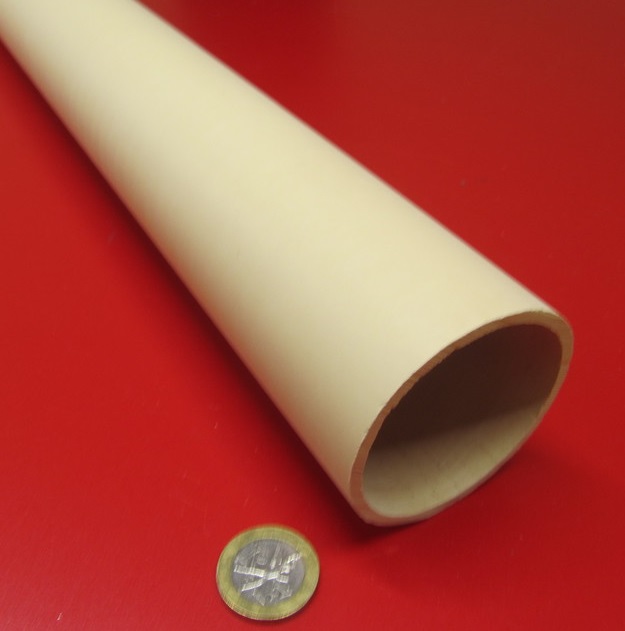

| DPT-22552Q | 2.437 | 2.187 | 15 Feet | $102.63 |
| DPT-1938 | 2.500 | 2.250 | 15 Feet | $105.01 |
| DPT-22541 | 2.562 | 2.312 | 15 Feet | $107.43 |

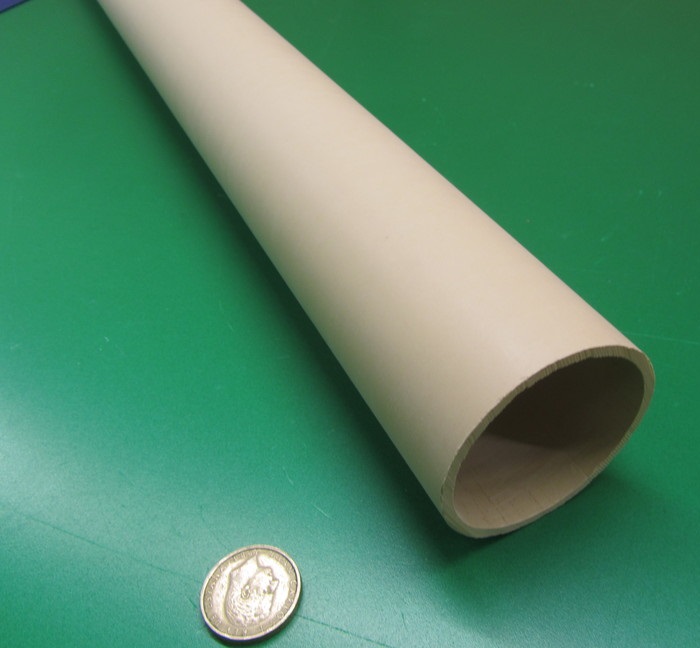

| DPT-4759 | 2.625 | 2.375 | 15 Feet | $109.73 |
| DPT-22557 | 2.688 | 2.437 | 12 Feet | $112.05 |
| DPT-1943 | 2.750 | 2.500 | 12 Feet | $114.46 |
| DPT-22546Q | 2.812 | 2.562 | 12 Feet | $116.78 |
| DPT-22545 | 2.875 | 2.625 | 12 Feet | $119.16 |
| DPT-22544Q | 2.937 | 2.687 | 12 Feet | $121.51 |
| DPT-1948 | 3.000 | 2.750 | 12 Feet | $123.88 |
| DPT-22834BQ | 3.062 | 2.812 | 12 Feet | $126.21 |
| DPT-22833BQ | 3.125 | 2.875 | 12 Feet | $128.58 |
| DPT-22822 | 3.188 | 2.937 | 12 Feet | $130.93 |
| DPT-1953 | 3.250 | 3.000 | 12 Feet | $133.31 |
| DPT-22840 | 3.312 | 3.062 | 12 Feet | $135.66 |
| DPT-22829BQ | 3.375 | 3.125 | 12 Feet | $138.03 |
| DPT-22828 | 3.437 | 3.187 | 12 Feet | $140.36 |
| DPT-1958 | 3.500 | 3.250 | 12 Feet | $142.73 |
| DPT-22746 | 3.562 | 3.312 | 12 Feet | $145.08 |
| DPT-22755BQ | 3.625 | 3.375 | 12 Feet | $147.46 |
| DPT-22764BQ | 3.687 | 3.437 | 9 Feet | $149.78 |
| DPT-1963 | 3.750 | 3.500 | 9 Feet | $152.16 |
| DPT-22752BQ | 3.812 | 3.500 | 9 Feet | $154.51 |
| DPT-22751 | 3.875 | 3.625 | 9 Feet | $156.88 |
| DPT-22750 | 3.937 | 3.687 | 9 Feet | $159.23 |
| DPT-1968 | 4.000 | 3.750 | 9 Feet | $161.61 |
| DPT-22748 | 4.062 | 3.812 | 9 Feet | $163.93 |
| DPT-22773BQ | 4.125 | 3.875 | 9 Feet | $166.31 |
| DPT-22754 | 4.187 | 3.937 | 9 Feet | $168.66 |
| DPT-1973 | 4.250 | 4.000 | 9 Feet | $171.03 |
| DPT-22782BQ | 4.312 | 4.062 | 9 Feet | $173.38 |
| DPT-22781BQ | 4.375 | 4.125 | 9 Feet | $175.76 |
| DPT-22780BQ | 4.437 | 4.187 | 9 Feet | $178.08 |

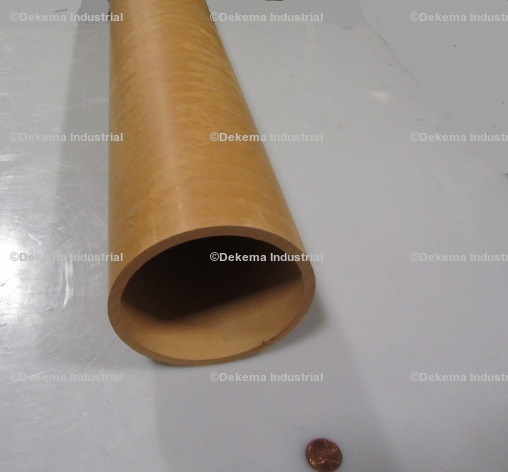

| DPT-22779 | 4.500 | 4.250 | 9 Feet | $180.46 |
| DPT-22778 | 4.562 | 4.312 | 9 Feet | $182.81 |
| DPT-22777BQ | 4.625 | 4.375 | 9 Feet | $185.18 |
| DPT-22776BQ | 4.687 | 4.438 | 9 Feet | $187.51 |
| DPT-1978 | 4.750 | 4.500 | 9 Feet | $189.88 |
| DPT-22774 | 4.812 | 4.562 | 9 Feet | $192.23 |
| DPT-22783 | 4.875 | 4.625 | 9 Feet | $194.61 |
| DPT-22772BQ | 4.937 | 4.687 | 9 Feet | $196.96 |
| DPT-22771BQ | 5.000 | 4.750 | 9 Feet | $199.33 |
| DPT-22770BQ | 5.062 | 4.812 | 9 Feet | $201.66 |
| DPT-22769BQ | 5.125 | 4.875 | 9 Feet | $204.03 |
| DPT-22768BQ | 5.187 | 4.937 | 9 Feet | $206.38 |
| DPT-1983 | 5.250 | 5.000 | 9 Feet | $208.76 |
| DPT-22766BQ | 5.312 | 5.062 | 9 Feet | $316.60 |
| DPT-22661BQ | 5.375 | 5.125 | 9 Feet | $320.16 |
| DPT-22538Q | 5.437 | 5.187 | 9 Feet | $323.68 |
| DPT-22690 | 5.500 | 5.250 | 9 Feet | $327.23 |
| DPT-22522Q | 5.562 | 5.313 | 9 Feet | $330.76 |
| DPT-22572 | 5.625 | 5.375 | 6 Feet | $334.31 |
| DPT-22571Q | 5.688 | 5.437 | 6 Feet | $337.81 |
| DPT-1989 | 5.750 | 5.500 | 6 Feet | $341.38 |
| DPT-22569 | 5.812 | 5.562 | 6 Feet | $344.88 |
| DPT-22826BQ | 5.875 | 5.625 | 6 Feet | $348.46 |
| DPT-22825 | 5.938 | 5.687 | 6 Feet | $351.96 |

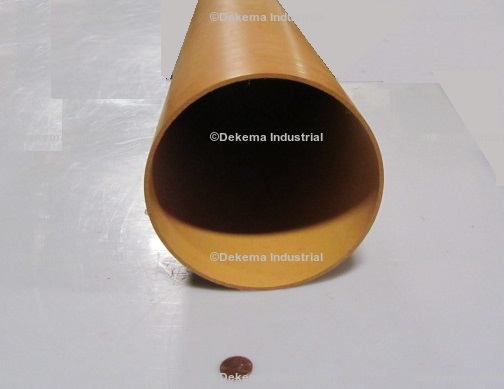

| DPT-22824BQ | 6.000 | 5.750 | 6 Feet | $355.53 |
| DPT-22849 | 6.063 | 5.812 | 9 Feet | $121.02 |
| DPT-22830BQ | 6.125 | 5.875 | 6 Feet | $362.60 |
| DPT-22832BQ | 6.187 | 5.937 | 6 Feet | $366.10 |
| DPT-1995 | 6.250 | 6.000 | 6 Feet | $369.68 |
| DPT-22857 | 6.312 | 6.062 | 6 Feet | $347.28 |
| DPT-22856BQ | 6.375 | 6.125 | 6 Feet | $350.80 |
| DPT-22855BQ | 6.437 | 6.187 | 6 Feet | $354.31 |
| DPT-22854BQ | 6.500 | 6.250 | 6 Feet | $357.83 |
| DPT-22853 | 6.562 | 6.312 | 6 Feet | $361.31 |
| DPT-22852 | 6.625 | 6.375 | 6 Feet | $364.85 |
| DPT-22841 | 6.688 | 6.437 | 6 Feet | $368.33 |
| DPT-22850BQ | 6.750 | 6.500 | 6 Feet | $371.86 |
| DPT-22858 | 6.812 | 6.562 | 6 Feet | $375.33 |
| DPT-22848BQ | 6.875 | 6.625 | 6 Feet | $378.88 |
| DPT-22847 | 6.938 | 6.687 | 6 Feet | $382.35 |
| DPT-22543 | 7.000 | 6.750 | 6 Feet | $385.88 |
| DPT-22607 | 7.062 | 6.812 | 6 Feet | $389.38 |
| DPT-22539BQ | 7.125 | 6.875 | 12 Feet | $73.90 |
| DPT-22584Q | 7.187 | 6.938 | 6 Feet | $396.38 |
| DPT-22641 | 7.250 | 7.000 | 6 Feet | $399.93 |
| DPT-22640 | 7.312 | 7.062 | 6 Feet | $403.41 |
| DPT-22639 | 7.375 | 7.125 | 6 Feet | $406.93 |
| DPT-22638 | 7.437 | 7.187 | 6 Feet | $410.41 |
| DPT-22637 | 7.500 | 7.250 | 6 Feet | $413.96 |
| DPT-22636 | 7.562 | 7.312 | 6 Feet | $417.43 |
| DPT-22626 | 7.625 | 7.375 | 6 Feet | $420.96 |
| DPT-22634 | 7.688 | 7.437 | 6 Feet | $424.46 |
| DPT-22642 | 7.750 | 7.500 | 6 Feet | $427.98 |
| DPT-22632BQ | 7.812 | 7.562 | 6 Feet | $431.46 |
| DPT-22631BQ | 7.875 | 7.625 | 6 Feet | $435.01 |
| DPT-22630BQ | 7.938 | 7.687 | 6 Feet | $438.48 |
| DPT-22629 | 8.000 | 7.750 | 6 Feet | $442.01 |
| DPT-22628BQ | 8.062 | 7.812 | 6 Feet | $445.48 |
| DPT-22650BQ | 8.125 | 7.875 | 6 Feet | $449.03 |
| DPT-22633 | 8.188 | 7.937 | 6 Feet | $452.51 |
| DPT-22635BQ | 8.250 | 8.000 | 6 Feet | $456.03 |
| DPT-22573Q | 8.375 | 8.125 | 6 Feet | $463.06 |
| DPT-22725 | 8.437 | 8.187 | 6 Feet | $466.53 |
| DPT-22724BQ | 8.500 | 8.250 | 6 Feet | $470.06 |
| DPT-22723BQ | 8.562 | 8.312 | 6 Feet | $473.55 |
| DPT-22722 | 8.625 | 8.375 | 6 Feet | $477.08 |
| DPT-22721 | 8.688 | 8.437 | 6 Feet | $480.56 |
| DPT-22720 | 8.750 | 8.500 | 6 Feet | $484.11 |
| DPT-22719 | 8.812 | 8.562 | 6 Feet | $487.58 |
| DPT-22708BQ | 8.875 | 8.625 | 6 Feet | $491.10 |
| DPT-22717BQ | 8.938 | 8.687 | 6 Feet | $494.58 |
| DPT-22726 | 9.000 | 8.750 | 6 Feet | $498.13 |
| DPT-22715BQ | 9.062 | 8.812 | 3 Feet | $501.61 |
| DPT-22714BQ | 9.125 | 8.875 | 3 Feet | $505.13 |
| DPT-22713 | 9.188 | 8.937 | 3 Feet | $508.63 |
| DPT-22712BQ | 9.250 | 9.000 | 3 Feet | $512.16 |
| DPT-22711 | 9.312 | 9.062 | 3 Feet | $515.63 |
| DPT-22710BQ | 9.375 | 9.125 | 3 Feet | $519.18 |
| DPT-22735BQ | 9.437 | 9.187 | 3 Feet | $522.66 |
| DPT-22716 | 9.500 | 9.250 | 3 Feet | $526.18 |
| DPT-22718BQ | 9.563 | 9.312 | 3 Feet | $529.66 |
| DPT-22744 | 9.625 | 9.375 | 3 Feet | $533.21 |
| DPT-22743 | 9.688 | 9.437 | 3 Feet | $536.68 |
| DPT-22742BQ | 9.750 | 9.500 | 3 Feet | $540.21 |
| DPT-22741 | 9.812 | 9.562 | 3 Feet | $543.71 |
| DPT-22740BQ | 9.875 | 9.625 | 3 Feet | $547.23 |
| DPT-22739BQ | 9.937 | 9.687 | 3 Feet | $550.71 |
| DPT-22738 | 10.000 | 9.750 | 6 Feet | $554.26 |
| DPT-22727BQ | 10.062 | 9.813 | 3 Feet | $557.73 |
| DPT-22736BQ | 10.125 | 9.875 | 3 Feet | $561.26 |
| DPT-22745BQ | 10.187 | 9.937 | 3 Feet | $564.73 |
| DPT-22734BQ | 10.250 | 10.00 | 3 Feet | $568.28 |
| DPT-22733BQ | 10.313 | 10.062 | 3 Feet | $571.76 |
| DPT-22732 | 10.375 | 10.125 | 3 Feet | $575.28 |
| DPT-22731BQ | 10.437 | 10.187 | 3 Feet | $578.76 |
| DPT-22730 | 10.500 | 10.250 | 3 Feet | $582.31 |
| DPT-22729BQ | 10.563 | 10.312 | 3 Feet | $585.78 |
| DPT-22728 | 10.625 | 10.375 | 3 Feet | $589.31 |
| DPT-22699 | 10.688 | 10.437 | 3 Feet | $592.81 |
| DPT-22671BQ | 10.750 | 10.500 | 3 Feet | $596.33 |
| DPT-22709BQ | 10.813 | 10.562 | 3 Feet | $599.81 |
| DPT-22686BQ | 10.875 | 10.625 | 3 Feet | $603.36 |
| DPT-22685 | 10.937 | 10.687 | 3 Feet | $606.83 |
| DPT-22684 | 11.000 | 10.750 | 3 Feet | $610.36 |
| DPT-22683BQ | 11.062 | 10.812 | 3 Feet | $613.83 |
| DPT-22682BQ | 11.125 | 10.875 | 3 Feet | $617.38 |
| DPT-22681 | 11.188 | 10.937 | 3 Feet | $620.86 |
| DPT-22670 | 11.250 | 11.000 | 3 Feet | $624.38 |
| DPT-22679 | 11.313 | 11.062 | 3 Feet | $627.88 |
| DPT-22688 | 11.375 | 11.125 | 3 Feet | $631.41 |
| DPT-22677BQ | 11.437 | 11.187 | 3 Feet | $634.88 |
| DPT-22676 | 11.500 | 11.250 | 3 Feet | $638.43 |
| DPT-22675BQ | 11.562 | 11.312 | 3 Feet | $641.91 |
| DPT-22674BQ | 11.625 | 11.375 | 3 Feet | $645.43 |
| DPT-22673BQ | 11.687 | 11.437 | 3 Feet | $648.91 |
| DPT-22672 | 11.750 | 11.500 | 3 Feet | $652.46 |
| DPT-22697BQ | 11.812 | 11.562 | 3 Feet | $655.93 |
| DPT-22680BQ | 11.937 | 11.687 | 3 Feet | $662.96 |
| DPT-22706 | 12.000 | 11.750 | 3 Feet | $666.48 |
| DPT-22705 | 12.062 | 11.812 | 3 Feet | $669.96 |
| DPT-22704 | 12.125 | 11.875 | 3 Feet | $673.51 |
| DPT-22703BQ | 12.187 | 11.937 | 3 Feet | $676.98 |
| DPT-22702BQ | 12.250 | 12.000 | 3 Feet | $680.51 |
| DPT-22701BQ | 12.313 | 12.062 | 3 Feet | $683.98 |
| DPT-22700 | 12.375 | 12.125 | 3 Feet | $687.53 |
| DPT-22689BQ | 12.437 | 12.187 | 3 Feet | $691.01 |
| DPT-22698 | 12.500 | 12.250 | 3 Feet | $694.53 |
| DPT-22707 | 12.562 | 12.312 | 3 Feet | $698.01 |
| DPT-22696 | 12.625 | 12.375 | 3 Feet | $701.56 |
| DPT-22695 | 12.687 | 12.437 | 3 Feet | $705.03 |
| DPT-22694BQ | 12.750 | 12.500 | 3 Feet | $708.56 |
| DPT-22605 | 12.812 | 12.562 | 3 Feet | $712.06 |
| DPT-22692 | 12.875 | 12.625 | 3 Feet | $715.58 |
| DPT-22603BQ | 12.937 | 12.687 | 3 Feet | $719.06 |
| DPT-22763 | 13.000 | 12.750 | 3 Feet | $722.61 |
| DPT-22687 | 13.062 | 12.813 | 3 Feet | $726.08 |
| DPT-22737BQ | 13.125 | 12.875 | 3 Feet | $729.61 |
| DPT-22801 | 13.187 | 12.937 | 3 Feet | $733.08 |
| DPT-22800BQ | 13.250 | 13.000 | 3 Feet | $736.63 |
| DPT-22799BQ | 13.312 | 13.062 | 3 Feet | $740.11 |
| DPT-22798BQ | 13.375 | 13.125 | 3 Feet | $743.63 |
| DPT-22797BQ | 13.437 | 13.187 | 3 Feet | $747.13 |
| DPT-22796 | 13.500 | 13.250 | 3 Feet | $750.66 |
| DPT-22795 | 13.562 | 13.312 | 3 Feet | $754.13 |
| DPT-22784 | 13.625 | 13.375 | 3 Feet | $757.68 |
| DPT-22793 | 13.687 | 13.437 | 3 Feet | $761.16 |
| DPT-22802BQ | 13.750 | 13.500 | 3 Feet | $764.68 |
| DPT-22791BQ | 13.812 | 13.562 | 3 Feet | $768.16 |
| DPT-22790 | 13.875 | 13.625 | 3 Feet | $771.71 |
| DPT-22789BQ | 13.937 | 13.687 | 3 Feet | $775.18 |
| DPT-22788 | 14.000 | 13.750 | 3 Feet | $778.71 |
| DPT-22787 | 14.062 | 13.812 | 3 Feet | $782.21 |
| DPT-22786 | 14.125 | 13.875 | 3 Feet | $785.73 |
| DPT-22811 | 14.187 | 13.937 | 3 Feet | $789.21 |
| DPT-22792BQ | 14.250 | 14.000 | 3 Feet | $792.76 |
| DPT-22794BQ | 14.312 | 14.062 | 3 Feet | $796.23 |
| DPT-22820BQ | 14.375 | 14.125 | 3 Feet | $799.76 |
| DPT-22819BQ | 14.437 | 14.187 | 3 Feet | $803.23 |
| DPT-22818BQ | 14.500 | 14.250 | 3 Feet | $806.78 |
| DPT-22817 | 14.562 | 14.312 | 3 Feet | $810.26 |
| DPT-22816 | 14.625 | 14.375 | 3 Feet | $813.78 |
| DPT-22815 | 14.687 | 14.437 | 3 Feet | $817.26 |
| DPT-22814 | 14.750 | 14.500 | 3 Feet | $820.81 |
| DPT-22803 | 14.812 | 14.562 | 3 Feet | $824.28 |
| DPT-22812BQ | 14.875 | 14.625 | 3 Feet | $827.81 |
| DPT-22821BQ | 14.937 | 14.687 | 3 Feet | $831.31 |
| DPT-22810 | 15.000 | 14.750 | 3 Feet | $834.83 |
| DPT-22809 | 15.062 | 14.812 | 3 Feet | $838.31 |
| DPT-22808 | 15.125 | 14.875 | 3 Feet | $841.86 |
| DPT-22807 | 15.187 | 14.937 | 3 Feet | $845.33 |
| DPT-22806 | 15.250 | 15.000 | 3 Feet | $848.86 |
| DPT-22805BQ | 15.312 | 15.062 | 3 Feet | $852.33 |
| DPT-22804 | 15.375 | 15.125 | 3 Feet | $855.88 |
| DPT-22775BQ | 15.437 | 15.187 | 3 Feet | $859.36 |
| DPT-22747 | 15.500 | 15.250 | 3 Feet | $862.88 |
| DPT-22785BQ | 15.562 | 15.312 | 3 Feet | $866.38 |
| DPT-22762 | 15.625 | 15.375 | 3 Feet | $869.91 |
| DPT-22761BQ | 15.687 | 15.437 | 3 Feet | $873.38 |
| DPT-22760BQ | 15.750 | 15.500 | 3 Feet | $876.93 |
| DPT-22759BQ | 15.812 | 15.562 | 3 Feet | $880.41 |
| DPT-22758BQ | 15.875 | 15.625 | 3 Feet | $883.93 |
| DPT-22757 | 15.937 | 15.687 | 3 Feet | $887.41 |
| DPT-22846 | 16.000 | 15.750 | 3 Feet | $890.96 |
| DPT-22845 | 16.062 | 15.812 | 3 Feet | $894.43 |
| DPT-22844BQ | 16.125 | 15.875 | 3 Feet | $897.96 |
| DPT-22843BQ | 16.187 | 15.937 | 3 Feet | $901.46 |
| DPT-22914 | 16.250 | 16.000 | 3 Feet | $904.98 |
| DPT-22839BQ | 16.312 | 16.062 | 3 Feet | $908.46 |
| DPT-22888 | 16.375 | 16.125 | 3 Feet | $912.01 |
| DPT-22866BQ | 16.437 | 16.187 | 3 Feet | $915.48 |
| DPT-22865BQ | 16.500 | 16.250 | 3 Feet | $919.01 |
| DPT-22950BQ | 16.562 | 16.312 | 3 Feet | $922.48 |
| DPT-22949 | 16.625 | 16.375 | 3 Feet | $926.03 |
| DPT-22948 | 16.687 | 16.437 | 3 Feet | $929.51 |
| DPT-22947BQ | 16.750 | 16.500 | 3 Feet | $933.03 |
| DPT-22946 | 16.812 | 16.562 | 3 Feet | $936.51 |
| DPT-22935BQ | 16.875 | 16.625 | 3 Feet | $940.06 |
| DPT-22944 | 16.937 | 16.687 | 3 Feet | $943.53 |
| DPT-22864BQ | 17.000 | 16.750 | 3 Feet | $947.08 |
| DPT-22942BQ | 17.062 | 16.812 | 3 Feet | $950.56 |
| DPT-22568 | 17.125 | 16.875 | 3 Feet | $954.08 |
| DPT-22567 | 17.187 | 16.937 | 3 Feet | $957.56 |
| DPT-22556Q | 17.250 | 17.000 | 3 Feet | $961.11 |
| DPT-22565 | 17.312 | 17.062 | 3 Feet | $964.58 |
| DPT-22574 | 17.375 | 17.125 | 3 Feet | $968.11 |
| DPT-22562 | 17.500 | 17.250 | 3 Feet | $975.13 |
| DPT-22561 | 17.562 | 17.312 | 3 Feet | $978.61 |
| DPT-22560 | 17.625 | 17.375 | 3 Feet | $982.13 |
| DPT-22559 | 17.687 | 17.437 | 3 Feet | $985.63 |
| DPT-22558 | 17.750 | 17.500 | 3 Feet | $989.16 |
| DPT-22564 | 17.875 | 17.625 | 3 Feet | $996.18 |
| DPT-22566 | 17.937 | 17.687 | 3 Feet | $999.66 |
| DPT-22592 | 18.000 | 17.750 | 3 Feet | $1,003.18 |
| DPT-22591 | 18.062 | 17.812 | 3 Feet | $1,006.66 |
| DPT-22590 | 18.125 | 17.875 | 3 Feet | $1,010.21 |
| DPT-22589 | 18.187 | 17.937 | 3 Feet | $1,013.68 |
| DPT-22588 | 18.250 | 18.000 | 3 Feet | $1,017.21 |
| DPT-22587 | 18.312 | 18.062 | 3 Feet | $1,020.71 |
| DPT-22586 | 18.375 | 18.125 | 3 Feet | $1,024.23 |
| DPT-22575 | 18.437 | 18.187 | 3 Feet | $1,027.71 |
| DPT-22584 | 18.500 | 18.250 | 3 Feet | $1,031.26 |
| DPT-22593Q | 18.562 | 18.312 | 3 Feet | $1,034.73 |
| DPT-22582 | 18.625 | 18.375 | 3 Feet | $1,038.25 |
| DPT-22581 | 18.687 | 18.437 | 3 Feet | $1,041.73 |
| DPT-22580 | 18.750 | 18.500 | 3 Feet | $1,045.28 |
| DPT-22579 | 18.812 | 18.563 | 3 Feet | $1,048.76 |
| DPT-22578 | 18.875 | 18.625 | 3 Feet | $1,052.28 |
| DPT-22577 | 18.937 | 19.687 | 3 Feet | $1,055.78 |
| DPT-22576 | 19.000 | 18.750 | 3 Feet | $1,059.30 |
| DPT-22547 | 19.062 | 18.812 | 3 Feet | $1,062.78 |
| DPT-22519 | 19.125 | 18.875 | 3 Feet | $1,066.33 |
| DPT-22557Q | 19.187 | 18.937 | 3 Feet | $1,069.80 |
| DPT-22534Q | 19.250 | 19.000 | 3 Feet | $1,073.33 |
| DPT-22533Q | 19.312 | 19.062 | 3 Feet | $1,076.80 |
| DPT-22532Q | 19.375 | 19.125 | 3 Feet | $1,080.36 |
| DPT-23051 | 19.437 | 19.187 | 3 Feet | $1,083.83 |
| DPT-22531Q | 19.500 | 19.250 | 3 Feet | $1,087.36 |
| DPT-22530Q | 19.562 | 19.312 | 3 Feet | $1,090.83 |
| DPT-22529 | 19.625 | 13.375 | 3 Feet | $1,094.38 |
| DPT-22518 | 19.687 | 19.437 | 3 Feet | $1,097.86 |
| DPT-22527Q | 19.750 | 19.500 | 3 Feet | $1,101.38 |
| DPT-22536Q | 19.812 | 19.562 | 3 Feet | $1,104.88 |
| DPT-22525Q | 19.875 | 19.625 | 3 Feet | $1,108.41 |
| DPT-22524 | 19.937 | 19.687 | 3 Feet | $1,111.88 |
| DPT-22523 | 20.000 | 19.750 | 3 | $1,115.43 |
| diameter | plus or minus (�) tolerance, inches | |||
| ID inside diameter | OD outside diameter | |||
| steel | built-up | |||
| .125" -.749" | .003" | - | .005" | |
| .750" - 1.999" | .004" | - | .005" | |
| 2.000" - 4.000" | .006" | - | .008" | |
| | *turned | *as wound | ||
| 4.001" - 12.000" | .010" | - | .025" | plus only |
| 12.001" - 18.000" | .030" | .060" | .030" | plus only |
| 18.001" - 24.000" | .040" | .075" | .035" | plus only |
| 24.001" - 48.000" | .060" | .090" | .040" | plus only |
| *Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request) | ||||
