Paper X, XX, XXX Phenolic Tubes 3/16" Wall Thickness
Paper X/XX/XXX Paper Reinforced Phenolic
- natural (tan)
Technical Data Sheet
This grade is composed of a paper base impregnated with a phenolic resin binder.
It has good electric strength properties with fair mechanical strength.
Outstanding for use as template material and or backup material.
NEMA
X certs to MIL-I-24768/12 PBM, IEC 60893-3 Type 4 PF CP 201
NEMA XX certs to
MIL-I-24768/11 PBG, IEC 60893-3 Type 4 PF CP 203
NEMA XXX certs to
MIL-I-24768/10 PBE, IEC 60893-3 Type 4 PF CP 201
NEMA grades X,
XX and XXX Paper Reinforced Phenolic -- natural color is typically light tan to
brown. These grades are composed of a paper base impregnated with a phenolic
resin binder. (Phenolics are the oldest, best-known general purpose thermoset
resins. They are among the lowest in cost and easiest to process. Phenolics are
quite adequate for a fair percentage of electrical applications. Generally
speaking, they are not equivalent to epoxies in resistance to moisture,
humidity, dimensional stability, shrinkage and retention of electrical
properties in extreme environments.) The paper reinforced phenolic has good
electric strength properties with fair mechanical strength and are outstanding
for use as template material and/or back-up material.
Click Here for X, XX, XXX or Sheets, Rods, Chemical Resistance Chart
| Select X, XX, XXX Tubing Wall Thickness | ||
| 1.00" | ||
Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts 42-48"
.187" Wall Thickness Paper Phenolic Tubes |
||||
| Part # | OD (in.) | ID (in.) | Minimum Purchase | Price Per Foot |
|---|---|---|---|---|
| DPT-1159 | .563 | .187 | 39 Feet | $36.68 |
| DPT-1163 | .625 | .250 | 36 Feet | $38.13 |
| DPT-23050 | .813 | .437 | 30 Feet | $45.78 |
| DPT-1883 | .875 | .500 | 30 Feet | $48.91 |
| DPT-1888 | .938 | .562 | 27 Feet | $52.00 |
| DPT-1894 | 1.000 | .625 | 27 Feet | $55.11 |
| DPT-22999 | 1.062 | .687 | 24 Feet | $58.23 |

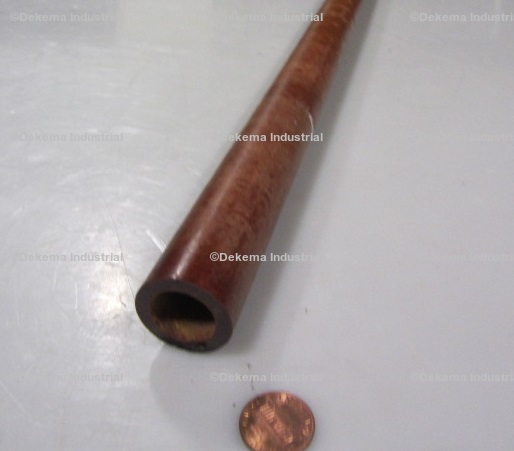

| DPT-1903 | 1.125 | .750 | 24 Feet | $61.33 |
| DPT-22997BQ | 1.187 | .812 | 21 Feet | $64.46 |
| DPT-1909 | 1.250 | .875 | 21 Feet | $67.55 |
| DPT-22995BQ | 1.312 | .937 | 21 Feet | $70.66 |
| DPT-1915 | 1.375 | 1.000 | 18 Feet | $73.78 |
| DPT-22301 | 1.500 | 1.125 | 18 Feet | $79.98 |
| DPT-22991 | 1.562 | 1.187 | 18 Feet | $83.08 |
| DPT-1919 | 1.625 | 1.250 | 15 Feet | $94.83 |
| DPT-22989Q | 1.688 | 1.312 | 15 Feet | $98.23 |
| DPT-22988BQ | 1.750 | 1.375 | 15 Feet | $101.68 |
| DPT-22987 | 1.812 | 1.437 | 15 Feet | $105.08 |
| DPT-1205 | 1.875 | 1.500 | 15 Feet | $108.53 |
| DPT-22992BQ | 1.937 | 1.562 | 12 Feet | $111.90 |
| DPT-22994 | 2.000 | 1.625 | 12 Feet | $115.36 |
| DPT-22317 | 2.062 | 1.687 | 12 Feet | $118.76 |
| DPT-22316 | 2.125 | 1.750 | 12 Feet | $122.21 |
| DPT-22315 | 2.188 | 1.812 | 12 Feet | $125.61 |
| DPT-22314 | 2.250 | 1.875 | 12 Feet | $129.03 |
| DPT-22313 | 2.312 | 1.937 | 12 Feet | $132.43 |
| DPT-22312 | 2.375 | 2.000 | 12 Feet | $135.88 |
| DPT-22310Q | 2.500 | 2.125 | 12 Feet | $142.73 |
| DPT-22318 | 2.562 | 2.187 | 12 Feet | $146.11 |
| DPT-22308 | 2.625 | 2.250 | 9 Feet | $149.56 |
| DPT-22307 | 2.688 | 2.312 | 9 Feet | $152.96 |
| DPT-22306Q | 2.750 | 2.375 | 9 Feet | $156.41 |
| DPT-22305 | 2.812 | 2.437 | 9 Feet | $159.81 |

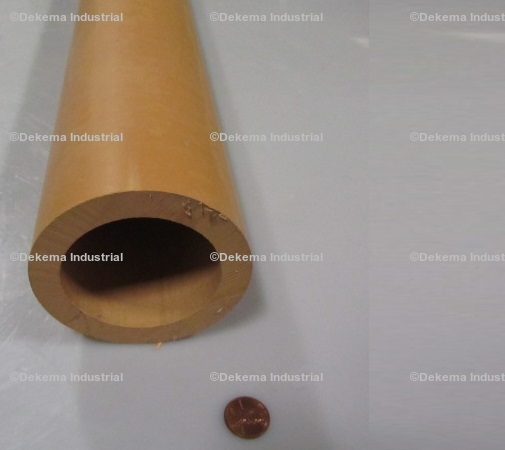

| DPT-22304 | 2.875 | 2.500 | 9 Feet | $163.26 |
| DPT-22303 | 2.937 | 2.562 | 9 Feet | $166.63 |
| DPT-22977BQ | 3.000 | 2.625 | 9 Feet | $170.08 |
| DPT-22952BQ | 3.062 | 2.687 | 9 Feet | $173.48 |
| DPT-22986 | 3.125 | 2.750 | 9 Feet | $176.93 |
| DPT-22965 | 3.188 | 2.812 | 9 Feet | $180.33 |
| DPT-22964BQ | 3.250 | 2.875 | 9 Feet | $183.78 |
| DPT-22963BQ | 3.312 | 2.937 | 9 Feet | $187.16 |

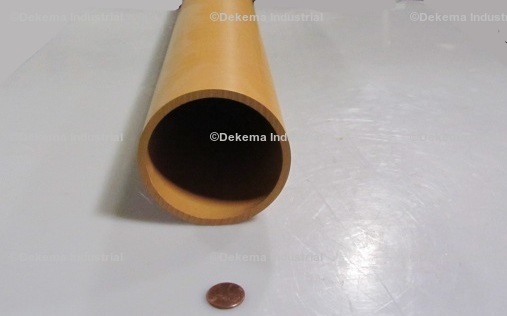

| DPT-22962BQ | 3.375 | 3.000 | 9 Feet | $190.61 |
| DPT-22961BQ | 3.437 | 3.062 | 9 Feet | $194.01 |
| DPT-22951BQ | 3.500 | 3.125 | 9 Feet | $197.46 |
| DPT-22959 | 3.562 | 3.187 | 9 Feet | $200.86 |
| DPT-22967 | 3.625 | 3.250 | 9 Feet | $204.31 |
| DPT-22957BQ | 3.687 | 3.312 | 9 Feet | $207.68 |
| DPT-22956BQ | 3.750 | 3.375 | 9 Feet | $211.13 |
| DPT-22955 | 3.812 | 3.437 | 9 Feet | $214.53 |
| DPT-22954 | 3.875 | 3.500 | 9 Feet | $217.98 |
| DPT-22953 | 3.937 | 3.562 | 6 Feet | $221.38 |
| DPT-22975BQ | 4.000 | 3.625 | 6 Feet | $224.81 |
| DPT-22958BQ | 4.062 | 3.687 | 6 Feet | $228.21 |
| DPT-22960BQ | 4.125 | 3.750 | 6 Feet | $231.66 |
| DPT-22983 | 4.187 | 3.812 | 6 Feet | $235.06 |
| DPT-22982 | 4.250 | 3.875 | 6 Feet | $238.51 |
| DPT-22981 | 4.312 | 3.937 | 6 Feet | $241.91 |
| DPT-22980BV | 4.375 | 4.000 | 6 Feet | $245.33 |
| DPT-22979 | 4.437 | 4.062 | 6 Feet | $248.73 |
| DPT-22978BQ | 4.500 | 4.125 | 6 Feet | $252.18 |
| DPT-22968BQ | 4.562 | 4.187 | 6 Feet | $255.58 |
| DPT-22976BQ | 4.625 | 4.250 | 6 Feet | $259.03 |
| DPT-22984BQ | 4.687 | 4.312 | 6 Feet | $262.41 |
| DPT-22974 | 4.750 | 4.375 | 6 Feet | $265.85 |
| DPT-22973BQ | 4.812 | 4.438 | 6 Feet | $269.26 |
| DPT-22972BQ | 4.875 | 4.500 | 6 Feet | $272.71 |
| DPT-22971BQ | 4.937 | 4.562 | 6 Feet | $276.10 |
| DPT-22970 | 5.000 | 4.625 | 6 Feet | $279.56 |
| DPT-22334 | 5.062 | 4.687 | 6 Feet | $282.93 |
| DPT-22966BQ | 5.125 | 4.750 | 6 Feet | $286.38 |
| DPT-22311 | 5.187 | 4.812 | 6 Feet | $289.78 |
| DPT-22368 | 5.250 | 4.875 | 6 Feet | $293.23 |
| DPT-22367Q | 5.312 | 4.937 | 6 Feet | $296.63 |
| DPT-22366 | 5.375 | 5.000 | 6 Feet | $300.08 |
| DPT-22365 | 5.437 | 5.062 | 6 Feet | $303.46 |
| DPT-22364 | 5.500 | 5.125 | 6 Feet | $306.91 |
| DPT-22363 | 5.562 | 5.187 | 6 Feet | $310.31 |
| DPT-19648 | 5.625 | 5.250 | 6 Feet | $313.76 |
| DPT-22353 | 5.688 | 5.313 | 6 Feet | $317.16 |
| DPT-5416R | 5.750 | 5.375 | 6 Feet | $320.61 |
| DPT-22369 | 5.812 | 5.437 | 6 Feet | $323.98 |
| DPT-22359 | 5.875 | 5.500 | 6 Feet | $327.43 |
| DPT-22358 | 5.938 | 5.562 | 6 Feet | $330.83 |
| DPT-22357 | 6.000 | 5.625 | 6 Feet | $334.28 |
| DPT-22356Q | 6.063 | 5.687 | 6 Feet | $337.68 |
| DPT-22355 | 6.125 | 5.750 | 6 Feet | $341.10 |
| DPT-22377 | 6.187 | 5.812 | 6 Feet | $344.51 |
| DPT-22360 | 6.250 | 5.875 | 6 Feet | $347.96 |
| DPT-22362 | 6.312 | 5.937 | 6 Feet | $351.35 |
| DPT-22385 | 6.375 | 6.000 | 6 Feet | $354.80 |
| DPT-22384 | 6.437 | 6.062 | 6 Feet | $318.91 |
| DPT-22383 | 6.500 | 6.125 | 6 Feet | $322.13 |
| DPT-22382Q | 6.562 | 6.187 | 6 Feet | $325.28 |
| DPT-22381 | 6.625 | 6.250 | 6 Feet | $328.51 |
| DPT-22380Q | 6.688 | 6.312 | 6 Feet | $331.66 |
| DPT-22370 | 6.750 | 6.375 | 6 Feet | $334.88 |
| DPT-22378 | 6.812 | 6.437 | 6 Feet | $338.03 |
| DPT-22376Q | 6.938 | 6.562 | 6 Feet | $344.41 |
| DPT-22375 | 7.000 | 6.625 | 6 Feet | $347.63 |
| DPT-22374 | 7.062 | 6.687 | 6 Feet | $350.78 |
| DPT-22373 | 7.125 | 6.750 | 6 Feet | $354.00 |
| DPT-22372 | 7.187 | 6.812 | 6 Feet | $357.18 |
| DPT-22371 | 7.250 | 6.875 | 6 Feet | $360.38 |
| DPT-22345Q | 7.312 | 6.938 | 6 Feet | $363.55 |
| DPT-22320 | 7.375 | 7.000 | 6 Feet | $366.75 |
| DPT-22354 | 7.437 | 7.062 | 6 Feet | $369.93 |
| DPT-22333Q | 7.500 | 7.125 | 6 Feet | $373.13 |
| DPT-22332Q | 7.562 | 7.187 | 6 Feet | $376.31 |
| DPT-22331 | 7.625 | 7.250 | 6 Feet | $379.51 |
| DPT-22330 | 7.688 | 7.312 | 6 Feet | $382.68 |
| DPT-22329 | 7.750 | 7.375 | 6 Feet | $385.88 |
| DPT-22319 | 7.812 | 7.437 | 3 Feet | $389.06 |
| DPT-22327Q | 7.875 | 7.500 | 6 Feet | $392.26 |
| DPT-22335 | 7.938 | 7.562 | 6 Feet | $395.43 |
| DPT-22325 | 8.000 | 7.625 | 3 Feet | $398.66 |
| DPT-22324 | 8.062 | 7.687 | 6 Feet | $401.81 |
| DPT-22323 | 8.125 | 7.750 | 3 Feet | $405.03 |
| DPT-22322 | 8.188 | 7.812 | 3 Feet | $408.18 |
| DPT-22321 | 8.250 | 7.875 | 3 Feet | $411.41 |
| DPT-22343Q | 8.312 | 7.937 | 6 Feet | $414.55 |
| DPT-22326 | 8.375 | 8.000 | 3 Feet | $417.78 |
| DPT-22351 | 8.500 | 8.125 | 6 Feet | $424.16 |
| DPT-22350 | 8.562 | 8.187 | 6 Feet | $427.30 |
| DPT-22349 | 8.625 | 8.250 | 6 Feet | $430.53 |
| DPT-22348 | 8.688 | 8.312 | 6 Feet | $433.68 |
| DPT-22347 | 8.750 | 8.375 | 6 Feet | $436.91 |
| DPT-22346 | 8.812 | 8.437 | 6 Feet | $440.08 |
| DPT-22336Q | 8.875 | 8.500 | 3 Feet | $443.28 |
| DPT-22344Q | 8.938 | 8.562 | 3 Feet | $446.46 |
| DPT-22352 | 9.000 | 8.625 | 3 Feet | $449.66 |
| DPT-22342Q | 9.062 | 8.687 | 3 Feet | $452.83 |
| DPT-22341 | 9.125 | 8.750 | 3 Feet | $456.03 |
| DPT-22340Q | 9.188 | 8.812 | 3 Feet | $459.21 |
| DPT-22339 | 9.250 | 8.875 | 3 Feet | $671.23 |
| DPT-22338Q | 9.312 | 8.937 | 3 Feet | $465.58 |
| DPT-22542Q | 9.375 | 9.000 | 3 Feet | $468.78 |
| DPT-22969 | 9.437 | 9.062 | 3 Feet | $471.96 |
| DPT-22473Q | 9.500 | 9.125 | 3 Feet | $475.18 |
| DPT-22709 | 9.563 | 9.187 | 3 Feet | $478.33 |
| DPT-22708 | 9.625 | 9.250 | 3 Feet | $481.56 |
| DPT-22707BQ | 9.688 | 9.312 | 3 Feet | $484.71 |
| DPT-22706BQ | 9.750 | 9.375 | 3 Feet | $487.93 |
| DPT-22705BQ | 9.812 | 9.437 | 3 Feet | $491.08 |
| DPT-22704BQ | 9.875 | 9.500 | 3 Feet | $494.31 |
| DPT-22694 | 9.937 | 9.562 | 3 Feet | $497.46 |
| DPT-22702 | 10.000 | 9.625 | 3 Feet | $500.68 |
| DPT-22710 | 10.062 | 9.687 | 3 Feet | $503.83 |
| DPT-22700BQ | 10.125 | 9.750 | 3 Feet | $507.05 |
| DPT-22699BQ | 10.187 | 9.813 | 3 Feet | $510.21 |
| DPT-22698BQ | 10.250 | 9.875 | 3 Feet | $513.43 |
| DPT-22697 | 10.313 | 9.937 | 3 Feet | $516.61 |
| DPT-22696BQ | 10.375 | 10.000 | 3 Feet | $519.81 |
| DPT-22718 | 10.437 | 10.062 | 3 Feet | $522.98 |
| DPT-22701 | 10.500 | 10.125 | 3 Feet | $526.18 |
| DPT-22703 | 10.563 | 10.187 | 3 Feet | $529.36 |
| DPT-22726BQ | 10.625 | 10.250 | 3 Feet | $532.56 |
| DPT-22725BQ | 10.688 | 10.312 | 3 Feet | $535.73 |
| DPT-22724 | 10.750 | 10.375 | 3 Feet | $538.93 |
| DPT-22723 | 10.813 | 10.437 | 3 Feet | $542.11 |
| DPT-22722BQ | 10.875 | 10.500 | 3 Feet | $545.31 |
| DPT-22721BQ | 10.937 | 10.562 | 3 Feet | $548.48 |
| DPT-22711BQ | 11.000 | 10.625 | 3 Feet | $551.68 |
| DPT-22719BQ | 11.062 | 10.687 | 3 Feet | $554.86 |
| DPT-22727 | 11.125 | 10.750 | 3 Feet | $558.08 |
| DPT-22717 | 11.188 | 10.812 | 3 Feet | $561.23 |
| DPT-22716BQ | 11.250 | 10.875 | 3 Feet | $564.46 |
| DPT-22715 | 11.313 | 10.937 | 3 Feet | $567.61 |
| DPT-22714 | 11.375 | 11.000 | 3 Feet | $570.83 |
| DPT-22713BQ | 11.437 | 11.062 | 3 Feet | $573.98 |
| DPT-22712 | 11.500 | 11.125 | 3 Feet | $577.21 |
| DPT-23036 | 11.562 | 11.187 | 3 Feet | $580.36 |
| DPT-22686 | 11.625 | 11.250 | 3 Feet | $583.58 |
| DPT-22661 | 11.687 | 11.312 | 3 Feet | $586.73 |
| DPT-22695BQ | 11.750 | 11.375 | 3 Feet | $589.96 |
| DPT-22674 | 11.812 | 11.437 | 3 Feet | $593.11 |
| DPT-22673 | 11.875 | 11.500 | 3 Feet | $596.33 |
| DPT-22672BQ | 11.937 | 11.562 | 3 Feet | $599.51 |
| DPT-22671 | 12.000 | 11.625 | 3 Feet | $602.71 |
| DPT-22670BQ | 12.062 | 11.687 | 3 Feet | $605.88 |
| DPT-22660 | 12.125 | 11.750 | 3 Feet | $609.08 |
| DPT-22668BQ | 12.187 | 11.812 | 3 Feet | $612.26 |
| DPT-22676BQ | 12.250 | 11.875 | 3 Feet | $615.46 |
| DPT-22666BQ | 12.313 | 11.937 | 3 Feet | $618.63 |
| DPT-22665BQ | 12.375 | 12.000 | 3 Feet | $621.83 |
| DPT-22664 | 12.437 | 12.062 | 3 Feet | $625.01 |
| DPT-22663 | 12.500 | 12.125 | 3 Feet | $628.21 |
| DPT-22662 | 12.562 | 12.187 | 3 Feet | $631.38 |
| DPT-22684BQ | 12.625 | 12.250 | 3 Feet | $634.61 |
| DPT-22667 | 12.687 | 12.312 | 3 Feet | $637.76 |
| DPT-22669 | 12.750 | 12.375 | 3 Feet | $640.98 |
| DPT-22692BQ | 12.812 | 12.437 | 3 Feet | $644.13 |
| DPT-22691BQ | 12.875 | 12.500 | 3 Feet | $647.36 |
| DPT-22689 | 13.000 | 12.625 | 3 Feet | $653.73 |
| DPT-22688BQ | 13.062 | 12.687 | 3 Feet | $656.88 |
| DPT-22687BQ | 13.125 | 12.750 | 3 Feet | $660.11 |
| DPT-22677 | 13.187 | 12.813 | 3 Feet | $663.26 |
| DPT-22685BQ | 13.250 | 12.875 | 3 Feet | $666.48 |
| DPT-22693 | 13.312 | 12.937 | 3 Feet | $669.63 |
| DPT-22683 | 13.375 | 13.000 | 3 Feet | $672.86 |
| DPT-22682 | 13.437 | 13.062 | 3 Feet | $676.03 |
| DPT-22681BQ | 13.500 | 13.125 | 3 Feet | $679.23 |
| DPT-22680 | 13.562 | 13.187 | 3 Feet | $682.41 |
| DPT-22679BQ | 13.625 | 13.250 | 3 Feet | $685.61 |
| DPT-22678BQ | 13.687 | 13.312 | 3 Feet | $688.78 |
| DPT-22729 | 13.750 | 13.375 | 3 Feet | $691.98 |
| DPT-22780 | 13.812 | 13.437 | 3 Feet | $695.16 |
| DPT-22720BQ | 13.875 | 13.500 | 3 Feet | $698.36 |
| DPT-22776 | 13.937 | 13.562 | 3 Feet | $701.53 |
| DPT-22775 | 14.000 | 13.625 | 3 Feet | $704.73 |
| DPT-22774BQ | 14.062 | 13.687 | 3 Feet | $707.91 |
| DPT-22773 | 14.125 | 13.750 | 3 Feet | $711.13 |
| DPT-22772 | 14.187 | 13.812 | 3 Feet | $714.28 |
| DPT-22762BQ | 14.250 | 13.875 | 3 Feet | $717.51 |
| DPT-22770 | 14.312 | 13.937 | 3 Feet | $720.66 |
| DPT-22778BQ | 14.375 | 14.000 | 3 Feet | $723.88 |
| DPT-22768 | 14.437 | 14.062 | 3 Feet | $727.03 |
| DPT-22767 | 14.500 | 14.125 | 3 Feet | $730.26 |
| DPT-22766 | 14.562 | 14.187 | 3 Feet | $733.41 |
| DPT-22765 | 14.625 | 14.250 | 3 Feet | $736.63 |
| DPT-22764 | 14.687 | 14.312 | 3 Feet | $739.78 |
| DPT-22763BQ | 14.750 | 14.375 | 3 Feet | $743.01 |
| DPT-22786BQ | 14.812 | 14.437 | 3 Feet | $746.16 |
| DPT-22788BQ | 14.875 | 14.500 | 3 Feet | $749.38 |
| DPT-22771 | 14.937 | 14.562 | 3 Feet | $752.56 |
| DPT-22794 | 15.000 | 14.625 | 3 Feet | $755.76 |
| DPT-22793BQ | 15.062 | 14.687 | 3 Feet | $758.93 |
| DPT-22792 | 15.125 | 14.750 | 3 Feet | $762.13 |
| DPT-22791 | 15.187 | 14.812 | 3 Feet | $765.31 |
| DPT-22790BQ | 15.250 | 14.875 | 3 Feet | $768.51 |
| DPT-22789 | 15.312 | 14.937 | 3 Feet | $771.68 |
| DPT-22779BQ | 15.375 | 15.000 | 3 Feet | $774.88 |
| DPT-22787BQ | 15.437 | 15.062 | 3 Feet | $778.06 |
| DPT-22796BQ | 15.500 | 15.125 | 3 Feet | $781.26 |
| DPT-22785 | 15.562 | 15.187 | 3 Feet | $784.43 |
| DPT-22784BQ | 15.625 | 15.250 | 3 Feet | $787.63 |
| DPT-22783BQ | 15.687 | 15.312 | 3 Feet | $790.81 |
| DPT-22782 | 15.750 | 15.375 | 3 Feet | $794.03 |
| DPT-22781 | 15.812 | 15.437 | 3 Feet | $797.18 |
| DPT-22754BQ | 15.875 | 15.500 | 3 Feet | $800.41 |
| DPT-22795BQ | 15.937 | 15.562 | 3 Feet | $803.56 |
| DPT-22769 | 16.000 | 15.625 | 3 Feet | $806.78 |
| DPT-22743BQ | 16.062 | 15.687 | 3 Feet | $809.93 |
| DPT-22742 | 16.125 | 15.750 | 3 Feet | $813.16 |
| DPT-22741BQ | 16.187 | 15.812 | 3 Feet | $816.31 |
| DPT-22740 | 16.250 | 15.875 | 3 Feet | $819.53 |
| DPT-22739 | 16.312 | 15.937 | 3 Feet | $822.68 |
| DPT-22738Q | 16.375 | 16.000 | 3 Feet | $825.91 |
| DPT-22728BQ | 16.437 | 16.062 | 3 Feet | $829.06 |
| DPT-22736 | 16.500 | 16.125 | 3 Feet | $832.28 |
| DPT-22744BQ | 16.562 | 16.187 | 3 Feet | $835.46 |
| DPT-22734 | 16.625 | 16.250 | 3 Feet | $838.66 |
| DPT-22733 | 16.687 | 16.312 | 3 Feet | $841.83 |
| DPT-22732BQ | 16.750 | 16.375 | 3 Feet | $845.03 |
| DPT-22731 | 16.812 | 16.437 | 3 Feet | $848.21 |
| DPT-22730BQ | 16.875 | 16.500 | 3 Feet | $851.41 |
| DPT-22752 | 16.937 | 16.562 | 3 Feet | $854.58 |
| DPT-22735 | 17.000 | 16.625 | 3 Feet | $857.78 |
| DPT-22737 | 17.062 | 16.687 | 3 Feet | $860.96 |
| DPT-22760 | 17.125 | 16.750 | 3 Feet | $864.16 |
| DPT-22759 | 17.187 | 16.812 | 3 Feet | $867.33 |
| DPT-22758 | 17.250 | 16.875 | 3 Feet | $870.56 |
| DPT-22757BQ | 17.312 | 16.937 | 3 Feet | $873.71 |
| DPT-22756 | 17.375 | 17.000 | 3 Feet | $876.93 |
| DPT-22755 | 17.437 | 17.062 | 3 Feet | $880.08 |
| DPT-22745 | 17.500 | 17.125 | 3 Feet | $883.31 |
| DPT-22753 | 17.562 | 17.187 | 3 Feet | $886.46 |
| DPT-22761 | 17.625 | 17.250 | 3 Feet | $889.68 |
| DPT-22751BQ | 17.687 | 17.312 | 3 Feet | $892.83 |
| DPT-22750BQ | 17.750 | 17.375 | 3 Feet | $896.06 |
| DPT-22749 | 17.812 | 17.437 | 3 Feet | $899.21 |
| DPT-22748BQ | 17.875 | 17.500 | 3 Feet | $902.43 |
| DPT-22747BQ | 17.937 | 17.562 | 3 Feet | $905.58 |
| DPT-22652BQ | 18.000 | 17.625 | 3 Feet | $908.81 |
| DPT-22777 | 18.062 | 17.687 | 3 Feet | $911.98 |
| DPT-22675 | 18.125 | 17.750 | 3 Feet | $915.18 |
| DPT-22573 | 18.187 | 17.812 | 3 Feet | $918.36 |
| DPT-22572Q | 18.250 | 17.875 | 3 Feet | $921.56 |
| DPT-22571 | 18.312 | 17.937 | 3 Feet | $924.73 |
| DPT-22570 | 18.375 | 18.000 | 3 Feet | $927.93 |
| DPT-22569Q | 18.437 | 18.062 | 3 Feet | $931.11 |
| DPT-22568 | 18.500 | 18.125 | 3 Feet | $954.16 |
| DPT-22558 | 18.562 | 18.187 | 3 Feet | $989.24 |
| DPT-22566 | 18.625 | 18.250 | 3 Feet | $999.74 |
| DPT-22574 | 18.687 | 18.312 | 3 Feet | $968.19 |
| DPT-22564 | 18.750 | 18.375 | 3 Feet | $996.26 |
| DPT-22562 | 18.875 | 18.500 | 3 Feet | $975.21 |
| DPT-22561 | 18.937 | 18.563 | 3 Feet | $978.69 |
| DPT-22560 | 19.000 | 18.625 | 3 Feet | $982.21 |
| DPT-22582 | 19.062 | 19.687 | 3 Feet | $1,038.33 |
| DPT-22565 | 19.125 | 18.750 | 3 Feet | $964.66 |
| DPT-22567 | 19.187 | 18.812 | 3 Feet | $957.64 |
| DPT-22590 | 19.250 | 18.875 | 3 Feet | $1,010.29 |
| DPT-22589 | 19.312 | 18.875 | 3 Feet | $1,013.76 |
| DPT-22588 | 19.375 | 19.000 | 3 Feet | $1,017.29 |
| DPT-22587 | 19.437 | 19.062 | 3 Feet | $1,020.79 |
| DPT-22586 | 19.500 | 19.125 | 3 Feet | $1,024.31 |
| DPT-22585Q | 19.625 | 19.250 | 3 Feet | $991.71 |
| DPT-22110 | 19.687 | 19.312 | 3 Feet | $994.88 |
| DPT-22575 | 19.687 | 19.312 | 3 Feet | $1,027.78 |
| DPT-22115 | 19.750 | 19.375 | 3 Feet | $998.08 |
| DPT-22114 | 19.812 | 19.437 | 3 Feet | $1,001.26 |
| DPT-22113 | 19.875 | 19.500 | 3 Feet | $1,004.46 |
| DPT-22112 | 19.937 | 19.562 | 3 Feet | $1,007.63 |
| DPT-22111 | 20.000 | 19.625 | 3 | $1,010.83 |
| diameter | plus or minus (�) tolerance, inches | |||
| ID inside diameter | OD outside diameter | |||
| steel | built-up | |||
| .125" -.749" | .003" | - | .005" | |
| .750" - 1.999" | .004" | - | .005" | |
| 2.000" - 4.000" | .006" | - | .008" | |
| | *turned | *as wound | ||
| 4.001" - 12.000" | .010" | - | .025" | plus only |
| 12.001" - 18.000" | .030" | .060" | .030" | plus only |
| 18.001" - 24.000" | .040" | .075" | .035" | plus only |
| 24.001" - 48.000" | .060" | .090" | .040" | plus only |
| *Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request) | ||||
